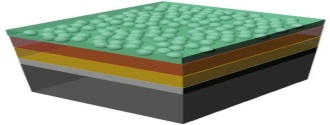

The illustration shows the structure of the sample: n-doped silicon layer (black), a thin silicon oxide layer (gray), an intermediate layer (yellow) and finally the protective layer (brown) to which the catalysing particles are applied. The acidic water is shown in green.
The team was able for the first time to produce a hybrid structure that converts 12 per cent of the incident solar energy into the form of hydrogen. The results have now been published in Advanced Energy Materials.
The “artificial leaf” consists in principle of a solar cell that is combined with further functional layers. These act as electrodes and additionally are coated with catalysts. If the complex system of materials is submerged in water and illuminated, it can decompose water molecules. This causes hydrogen to be generated that stores solar energy in chemical form. However, there are still several problems with the current state of technology. For one thing, sufficient light must reach the solar cell in order to create the voltage for water splitting — despite the additional layers of material. Moreover, the semiconductor materials that the solar cells are generally made of are unable to withstand the typical acidic conditions for very long. For this reason, the artificial leaf needs a stable protective layer that must be simultaneously transparent and conductive.
Catalyst used twice
The team worked with samples of silicon, an n-doped semiconductor material that acts as a simple solar cell to produce a voltage when illuminated. Materials scientist Anahita Azarpira, a doctoral student in Dr. Thomas Schedel-Niedrig’s group, prepared these samples in such a way that carbon-hydrogen chains on the surface of the silicon were formed. “As a next step, I deposited nanoparticles of ruthenium dioxide, a catalyst,” Azarpira explains. This resulted in formation of a conductive and stable polymeric layer only three to four nanometres thick. The reactions in the electrochemical prototype cell were extremely complicated and could only be understood with the help of Dr. Michael Lublow at HZB.
The ruthenium dioxide particles in this new process were being used twice for the first time. In the first place, they provide for the development of an effective organic protective layer. This enables the process for producing protective layers — normally very complicated — to be greatly simplified. Only then does the catalyst do its “normal job” of accelerating the partitioning of water into oxygen and hydrogen.
High efficiency: 12 per cent of the solar energy is converted into hydrogen
The silicon electrode protected with this layer achieves solar-to-hydrogen efficiency of about 12 per cent. In addition, the researchers observed no degradation of the cell — the yield remained constant over the entire 24-hour measurement period. “It is remarkable that an entirely different material has been favoured as an organic protective layer: graphene. This two-dimensional material has been the subject of much discussion, yet up to now could only be employed for electrochemical processes with limited success, while the protective layer developed by us works quite well,” explains Michael Lublow. Because the novel material could lend itself for the deposition process as well as for other applications, we are trying to acquire international protected property rights,” says Thomas Schedel-Niedrig, head of the group.
